Just Joel Posted August 29, 2011 Report Share Posted August 29, 2011 For lack of a better name, what is the bar that runs along the flange at the back corner of the oil pan on my l20b? It bolts down using the oil pan bolts and is form fit like a factory piece but I see no reference to it in the fsm or the other manuals I have. Should I put it back on or is it needed at all? Thanks Joel Quote Link to comment
flatcat19 Posted August 29, 2011 Report Share Posted August 29, 2011 OIC's? Which side of motor? Does it connect to anything? Quote Link to comment
.sunlover Posted August 29, 2011 Report Share Posted August 29, 2011 PUT IT BACK ON! I forgot to, and i'm going to be replacing my thick cork gasket and adding it back now, because mine's pouring some out for it's homies that died on the streets. It's like a reinforcement for the oil pan bolts for a small section of the pan right? It's a bitch to do when it's already installed. Quote Link to comment
flatcat19 Posted August 29, 2011 Report Share Posted August 29, 2011 PUT IT BACK ON! I forgot to, and i'm going to be replacing my thick cork gasket and adding it back now, because mine's pouring some out for it's homies that died on the streets. It's like a reinforcement for the oil pan bolts for a small section of the pan right? It's a bitch to do when it's already installed. Cork gasket?!? :hmm: Why are cork gaskets still being made? Quote Link to comment
.sunlover Posted August 29, 2011 Report Share Posted August 29, 2011 Cork gasket?!? :hmm: Why are cork gaskets still being made? IDK, what's wrong with them? Quote Link to comment
flatcat19 Posted August 29, 2011 Report Share Posted August 29, 2011 IDK, what's wrong with them? Besides cracking easily after a short amount of time or heat? Nothing. And being a terrible pain to get off when replacing? Nothing. Let me guess...Victor Reinz gasket kit? I've never had good luck with them, and prefer something else...that may be just me though. Quote Link to comment
Laecaon Posted August 29, 2011 Report Share Posted August 29, 2011 Besides cracking easily after a short amount of time or heat? Nothing. And being a terrible pain to get off when replacing? Nothing. Let me guess...Victor Reinz gasket kit? I've never had good luck with them, and prefer something else...that may be just me though. What has been on my my L16 for forever. Came off easy. Came of the L18 easy, twice. And they are probably Fel-Pro. I cant find many other brands near by... Quote Link to comment
flatcat19 Posted August 29, 2011 Report Share Posted August 29, 2011 FelPro has a weird textured rubber oil pan gasket with their kit. Have a brand new kit I just got. I know Victor Reinz is notorious for having cork gaskets in their kits. Never dealt with cork on a Datto... But on everything else I've ever worked on with cork has been a nightmare. Oil pans. Trans pans. Valve covers. Even other techs I've worked with bitch and whine about cork. Anyways...total thread jack. I don't have any clue the brackets OP is talking of. Quote Link to comment
Laecaon Posted August 29, 2011 Report Share Posted August 29, 2011 What kit? I just bought 2 Fel-Pro oil pan gaskets, both 100% cork. My guess about the bar, is to spread the torque. make a better seal. Quote Link to comment
Just Joel Posted August 29, 2011 Author Report Share Posted August 29, 2011 lol... I got excited when I saw I had eight responses ;) This bar is shaped and drilled for just the back corner, for about five holes in each dirrection. No pics off hand (I'm on my phone at work) but why would nissan only bar a small portion of the pan flange? Seems like there should be a lot more if these if their intent was to reinforce the lip? Anyone know what I'm talking about? Must not be a very common thing for these old l motors... Thanks Joel Quote Link to comment
Just Joel Posted August 29, 2011 Author Report Share Posted August 29, 2011 NEWS FLASH! Just called the local nissan parts dealer and he shows that one bar (and only that bar) as a factory part... Must need extra reinforcement in that corner. Maybe as a result of the rear sump and extra oil capacity at the back of the pan? Later Joel Quote Link to comment
banzai510(hainz) Posted August 29, 2011 Report Share Posted August 29, 2011 one of my motors has it the other 2 dont. cork is fine but dont over tighten it as it can split. the Felpro non cork I do like. But last gasket I got I swaer was Cork Quote Link to comment
izzo Posted August 29, 2011 Report Share Posted August 29, 2011 I have the bar on my motors as well. Not sure why its needed, but if you have it, use it. I have used it on mine even when i didn't want to and haven't had any issues. Guess they put it there for a reason? Probably to even out the pressure holding the gasket tight. So far, no leaks :D Quote Link to comment
69FJWagon Posted August 31, 2011 Report Share Posted August 31, 2011 I believe they came stock on the Z car engines and basically they allow you to tighten the pan down without distorting the pan rail(as long as you dont over tighten it) and causing a leak in the lowest part of the pan keep it in there they help Clayton Quote Link to comment
SR20-620 Posted August 31, 2011 Report Share Posted August 31, 2011 that thing? i took it off and threw it over the fence, worked great without it and a fel pro cork gasket. Quote Link to comment
HRH Posted August 31, 2011 Report Share Posted August 31, 2011 It's a reinforcement for flexing, thus opening the back end of the oil pan and causing a leak. Use with or without. No reason not to use it really. As far as oil pan gaskets go, cork sucks. I don't use gaskets anymore. The Right Stuff gasket maker only. It's a bitch to get off, but I'd rather spend 30 minutes scraping than deal with an oil pan leak. I've sealed the 510 and the truck with Right Stuff, never had leak one. Pretty much using it on all oil pan gaskets unless otherwise specified. Just make sure the pick up tube doesn't hit the bottom of the pan. Quote Link to comment
Fidencio74 Posted June 11 Report Share Posted June 11 Do you know which side of the oil pan does the L bracket go? Driver or passenger. I installed a felpro gasket on my l20b 620 and the back of it has a small leak. I installed the bracket on the passenger side. the oil moisture is on the driver side. Do I have it on the wrong side? I got an OEM gasket that I am planning on changing if the leak continues. I retorque all the bolts to see if it helps. Thank you Quote Link to comment

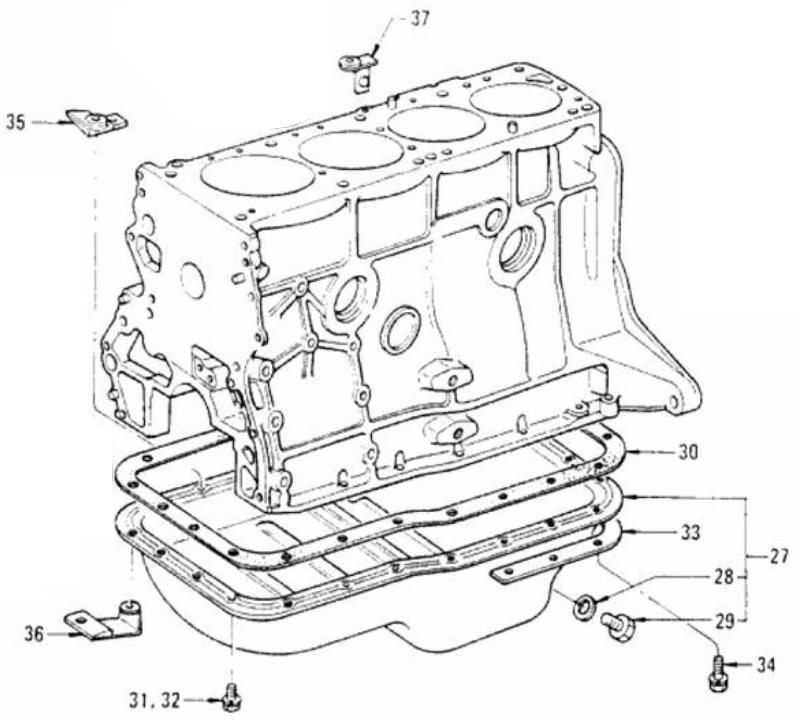

ggzilla Posted June 12 Report Share Posted June 12 11124-U0100 OIL PAN REINFORCEMENT from 1972 (designed for the 610, was used on the last year of the 510 as well) Goes on the left side (driver's side) #33 is this diagram 1 Quote Link to comment
datzenmike Posted June 12 Report Share Posted June 12 Yup. If changing the gasket get a hammer and dolly and flatten the bumps caused by over tightening the pan bolts into a soft gasket. On my 710 I got a second L bracket and continued around the right side also. 1 Quote Link to comment
ggzilla Posted June 12 Report Share Posted June 12 1 hour ago, Fidencio74 said: I installed a felpro gasket on my l20b 620 and the back of it has a small leak In addition to the oil pan gasket, the factory service manual says you need one more thing: "Oil pan should be tightened in criss-cross pattern to a final torque of 0.6 to 0.9 kg-m (4.3 to 6.5 ft-lb)." That is a very light torque. If you tightened it more than that, you may need to remove the pan and hammer the flange straight again in order to fix the leak Quote Link to comment
Fidencio74 Posted June 12 Report Share Posted June 12 (edited) I just checked again, and the leak is coming from the passenger side where the bracket is. I am not sure where I saw that the bracket goes on the passenger side. I torqued the shit out of the bolts. now there is a small drip on the floor. just lately it was just after a drive. I had them torque at 5 ft-tq. I thought it was loose. I also think the bolts I places on the bracket were too long. I just got some 16mm to replace the 20mm. The oil pan seemed straight when I first installed. Thank you Edited June 12 by Fidencio74 Quote Link to comment
ggzilla Posted June 12 Report Share Posted June 12 1 hour ago, Fidencio74 said: I had them torque at 5 ft-tq. I thought it was loose. That is not loose, that is the factory specification Almost always oil pan leaks are caused when a previous owner had them overtightened, distorting the oil pan around a bolt hole Quote Link to comment
Stoffregen Motorsports Posted June 12 Report Share Posted June 12 If the pan has ever been installed with RTV, that dried up RTV can get into the threaded holes and cause the bolt to bottom out. The easiest way to get that old RTV out of the threaded hole is by using a small pick and compressed air, but be careful. That projectile comes out fast and can hit you in the face like a bullet. In extreme cases, the dried RTV is so lodged in there that you need to chase the threads with a tap to get it out. Quote Link to comment
Fidencio74 Posted June 12 Report Share Posted June 12 (edited) 1 hour ago, ggzilla said: That is not loose, that is the factory specification Almost always oil pan leaks are caused when a previous owner had them overtightened, distorting the oil pan around a bolt hole OK, I will check the oil pan again. Thank you Edited June 12 by Fidencio74 Quote Link to comment
Fidencio74 Posted June 12 Report Share Posted June 12 24 minutes ago, Stoffregen Motorsports said: If the pan has ever been installed with RTV, that dried up RTV can get into the threaded holes and cause the bolt to bottom out. The easiest way to get that old RTV out of the threaded hole is by using a small pick and compressed air, but be careful. That projectile comes out fast and can hit you in the face like a bullet. In extreme cases, the dried RTV is so lodged in there that you need to chase the threads with a tap to get it out. I didn't see any rtv on the pan when I replaced the gasket, but I will check again once I take it appart. Thank you Quote Link to comment
