Hi Folks,

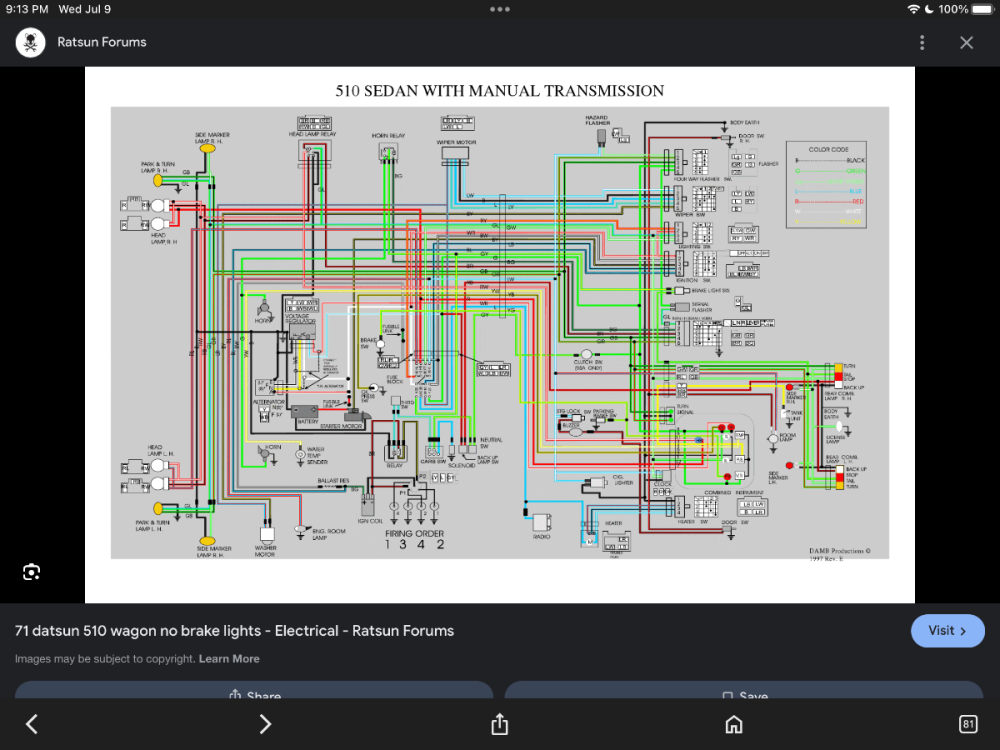

Paolo Musante/Axsys Technologies Ltd. has made available for download his hi-resolution color wiring diagrams for the Datsun 510. These are vector-based PDFs with layers, allowing you to zoom in very far with great detail, as well as having the ability to turn on/off certain wire colors or components, depending on whether your PDF viewer software allows layered functions. Paolo sells these printed as dual-sided 11x17 laminated reference cards for easy reference. There are 8 PDF files in the set including:


#1 – 1968 510 Sedan

#2 – 1968 510 Wagon

#3 – 1969 510 Sedan

#4 – 1969 510 Wagon

#5 – 1970-72 510 Sedan Automatic

#6 – 1970-72 510 Wagon Automatic

#7 - 1970-72 510 Sedan Manual

#8 - 1970-72 510 Wagon Manual


Downloads available at http://datsun510.com or if you would like a high quality laminated hard copy contact Paolo directly by contacting him on the bluebirds mailing list.


Thanks, Derek
