ggzilla Posted May 17, 2025 Report Share Posted May 17, 2025 (edited) NOTE: There are various old topics about this on Ratsun, but most of the pics have expired. Please add photos and comments as you see fit Datsun Model Series 510 (sold outside North America as the "Bluebird 510" or 1300/1400/1600/1800 depending on the engine size). PL510 was sold in Europe and North America and designates LHD with P engine (1600 engine). H510 is the H engine version (1800) * All trim models use the same style grille, with the emblem differing on base, Deluxe, GL or SSS cars * SSS sometimes had the grille painted differently (black or with white stripe) * 2-door Coupe grille differed from 2-dr sedan grill 1967-1968 stainless steel grille with center horizontal badge. This one has the 'D' emblem used on Deluxe models 1969 Sedan/Van/Wagon has a doubled center bar and vertical center badge 1969-1971 Coupe 1600. This one has an SSS badge and "white-stripe" center rib 1970-1971 SSS grill (also used 1970-1973 North America) 1970-1971 JDM Deluxe grille 1972 JDM grill metal with plastic headlight buckets. The "supersonic" emblem bolted on used on Deluxe cars 510 OPTION PARTS Fog Lamp grille Edited May 17, 2025 by ggzilla update links 1 Quote Link to comment

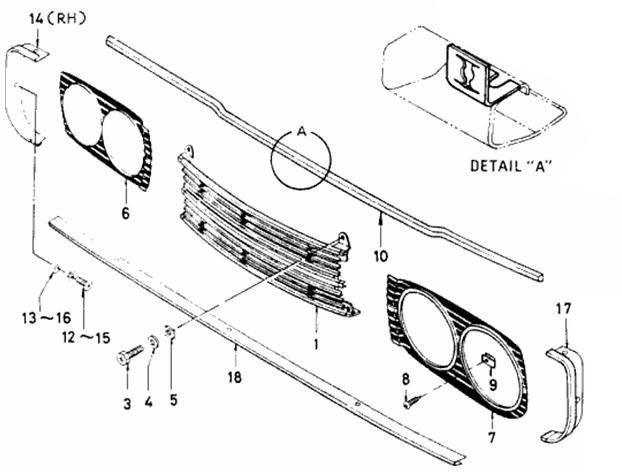

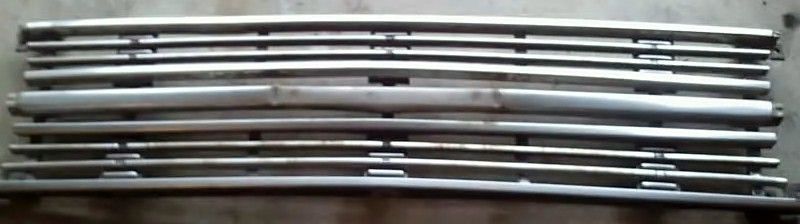

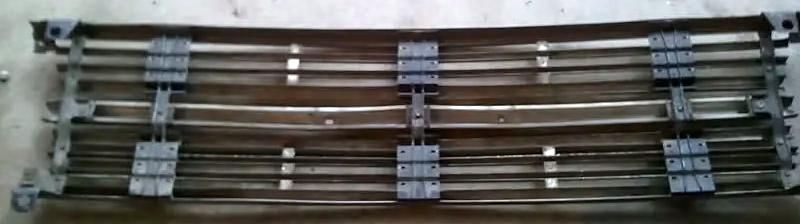

ggzilla Posted May 17, 2025 Author Report Share Posted May 17, 2025 1967-1968 Grille (1968 model year started in 1967 in both Japan and North America) * dished headlight bezels * horizontal center emblem 62300-21000 GRILLE-radiator Standard 62300-21600 GRILLE-radiator DELUXE Sedan & all Wagon 62400-21000 FINISHER-head lamp RH 62401-21000 FINISHER-head lamp LH 1968 9-slat stainless steel grille with center horizontal badge. The grille center is forward of the headlights, matching the lines of the hood The headlight bezel finishers come forward where they meet the grille center 1968 grill with some bars painted black and a JDM red/black/blue 'D' EMBLEM 1 GRILLE 6, 7 HEAD LAMP FINISHERS 14, 17 MOULDING 10 HOOD TOP MOULDING 17 FRONT CENTER MOULDING Quote Link to comment

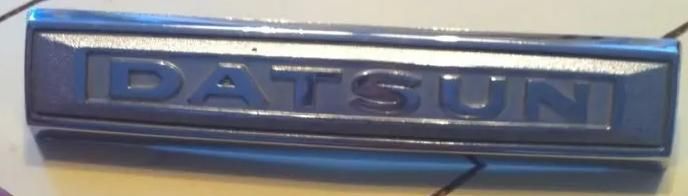

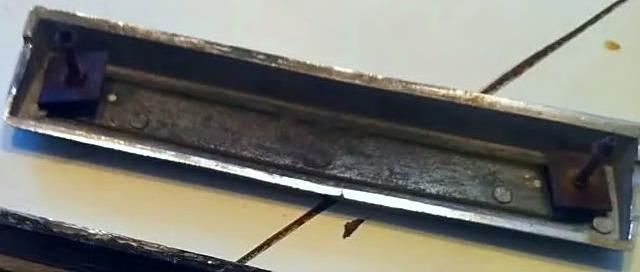

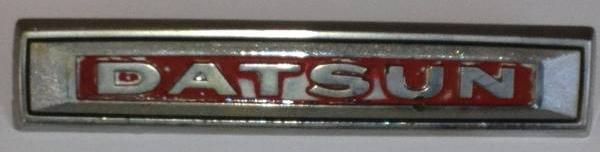

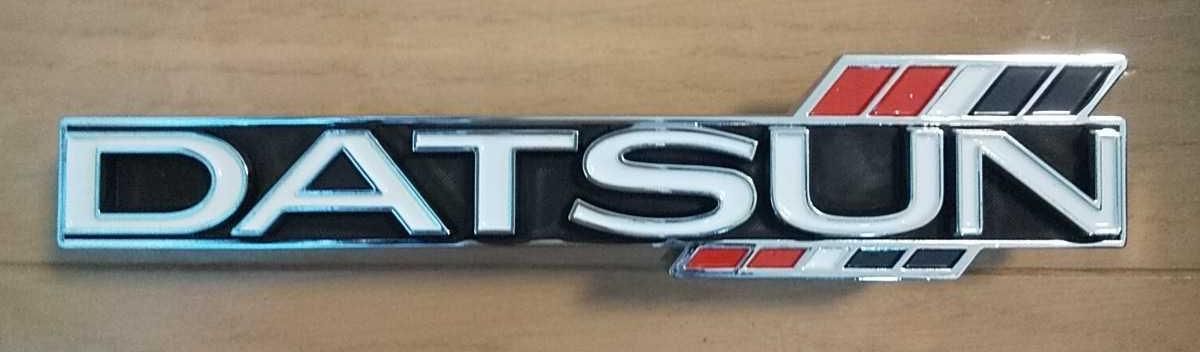

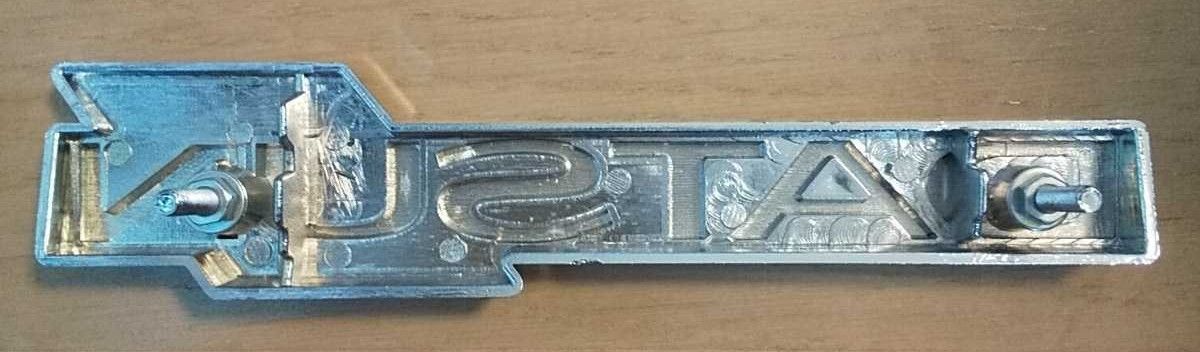

ggzilla Posted May 17, 2025 Author Report Share Posted May 17, 2025 1968 Grille Badges 62800-21000 EMBLEM-radiator grille center 'D' (JDM) 62800-21300 EMBLEM-radiator grille center 'DATSUN' (USA) JDM multi-color red/black/blue with "D" USA red with "DATSUN" horizontal badges Type 213 emblem 'DATSUN'. the paint is often faded away to nothing hand-painted to restore the red Quote Link to comment

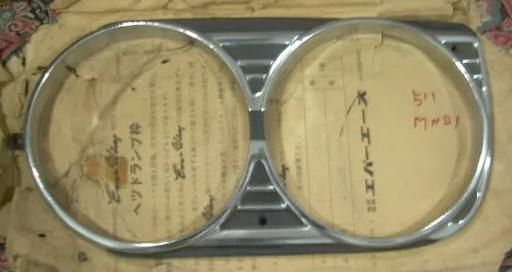

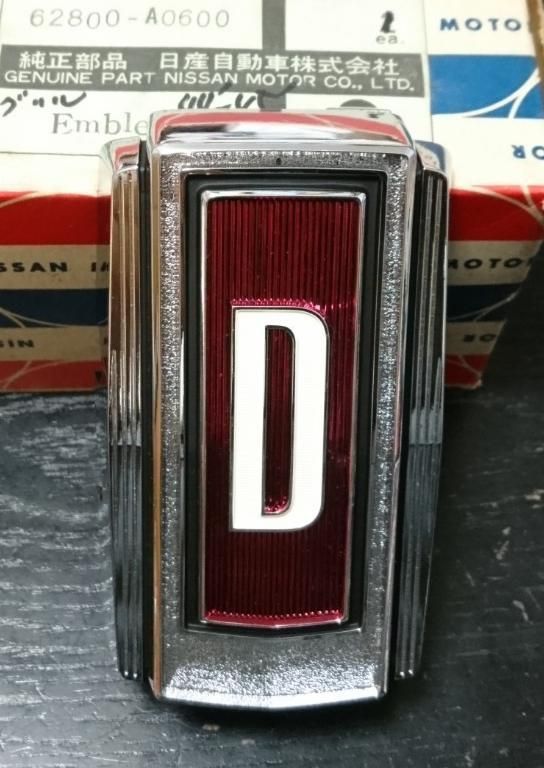

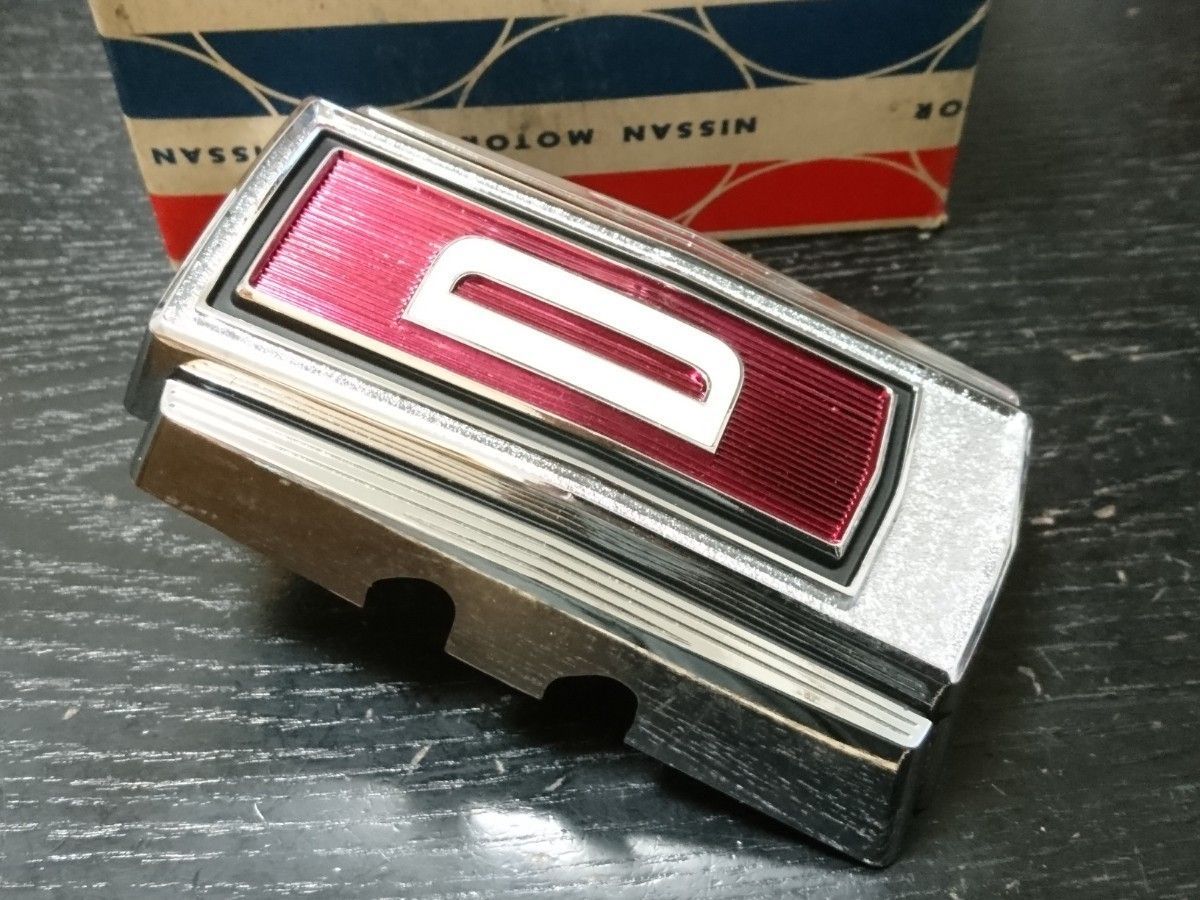

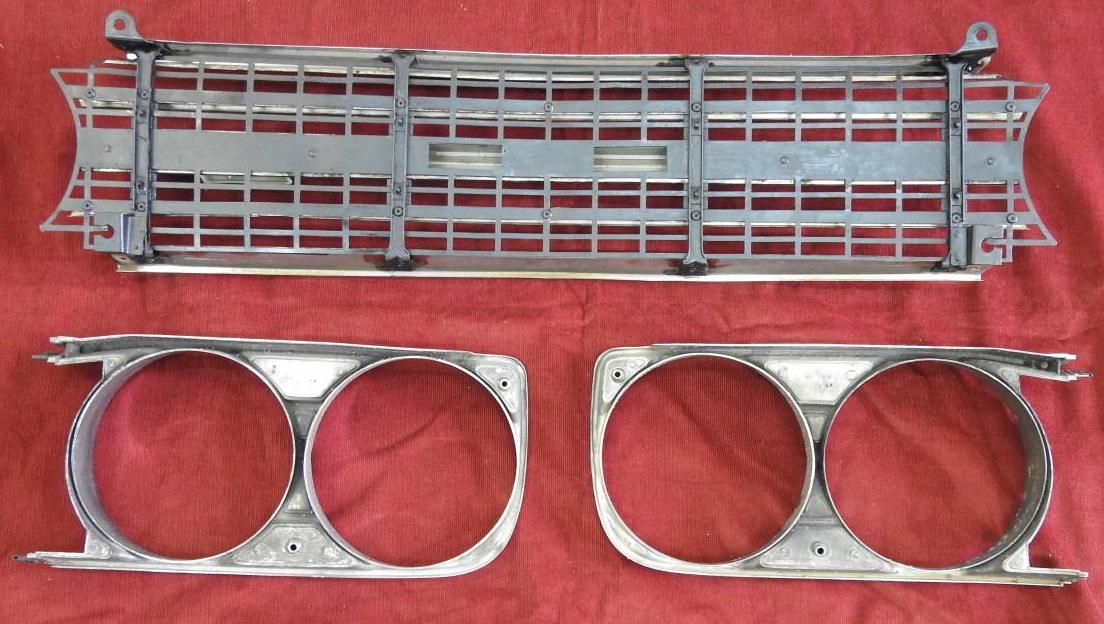

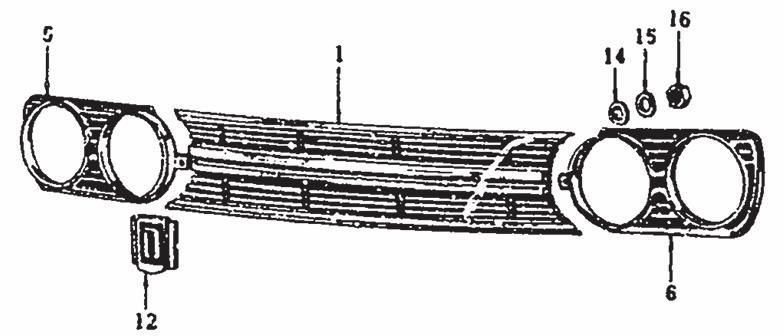

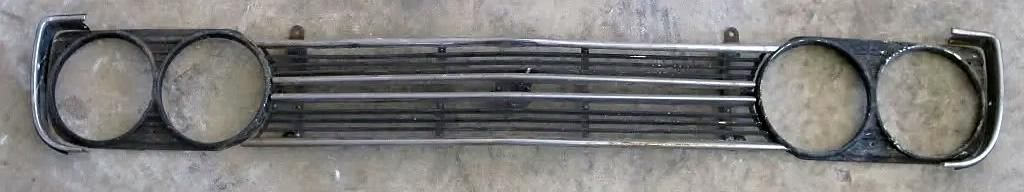

ggzilla Posted May 17, 2025 Author Report Share Posted May 17, 2025 (edited) 1969 10-slat stainless grille with flat headlight bezels * flat headlight bezels * vertical center emblem * Stainless trim surrounds same as 1968 62300-A0600 GRILLE-radiator Standard Sedan & Van 62300-A0800 GRILLE-radiator DELUXE Sedan & all Wagon 62400-A0600 FINISHER-head lamp RH 62401-A0600 FINISHER-head lamp LH * Coupe differs. See next post 1969 grille has 2 thicker center bars 1969 Coupe (JDM 2-door fastback) uses same grille as other 1969s but has a "white stripe" in between the two center bars. Coupe debut 1968.10 See next post Customized: badge delete and most of the slats painted black Grille with R and L moldings bezels wrap around headlights and do not bulge forward to meet the grill like the '68s 1969 grille badge 62800-A0600 EMBLEM-radiator grille center Sedan 'D' vertical ALL height about 11 cm Edited May 17, 2025 by ggzilla Quote Link to comment

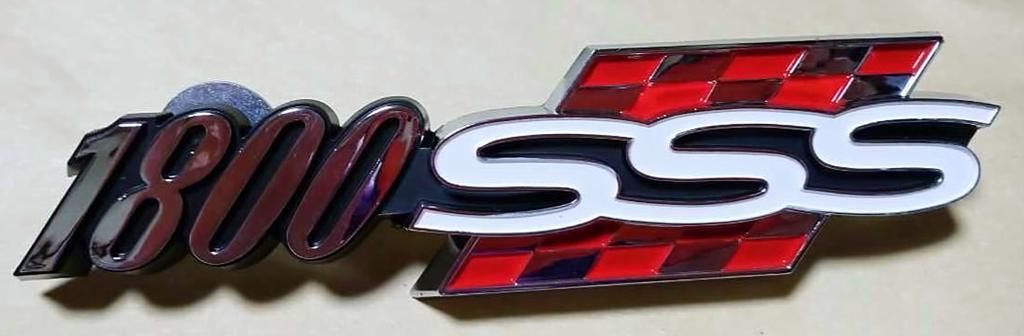

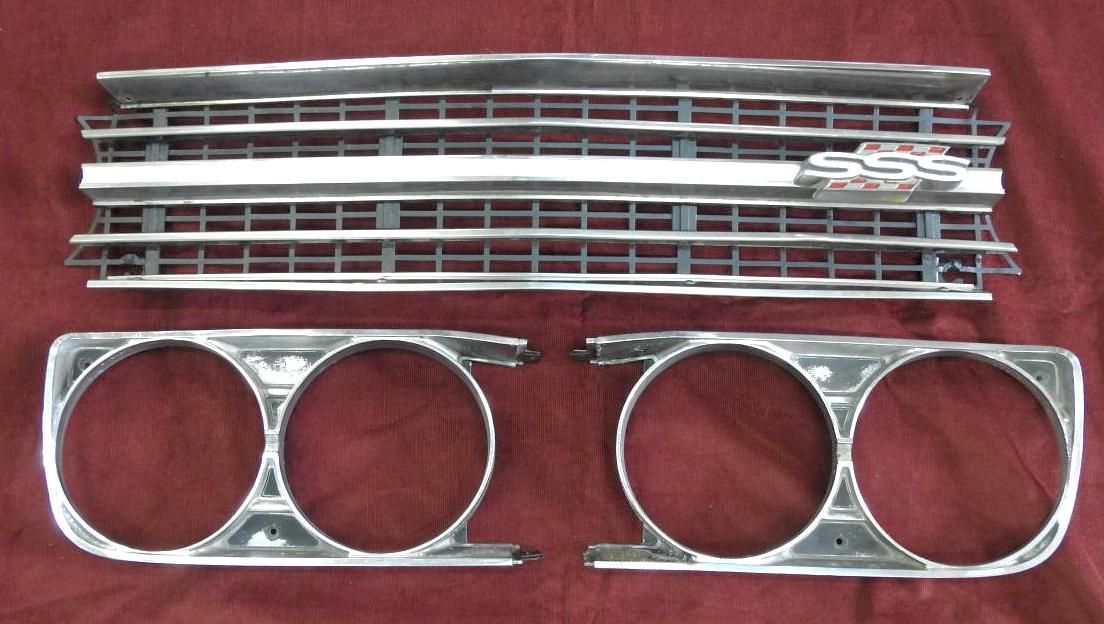

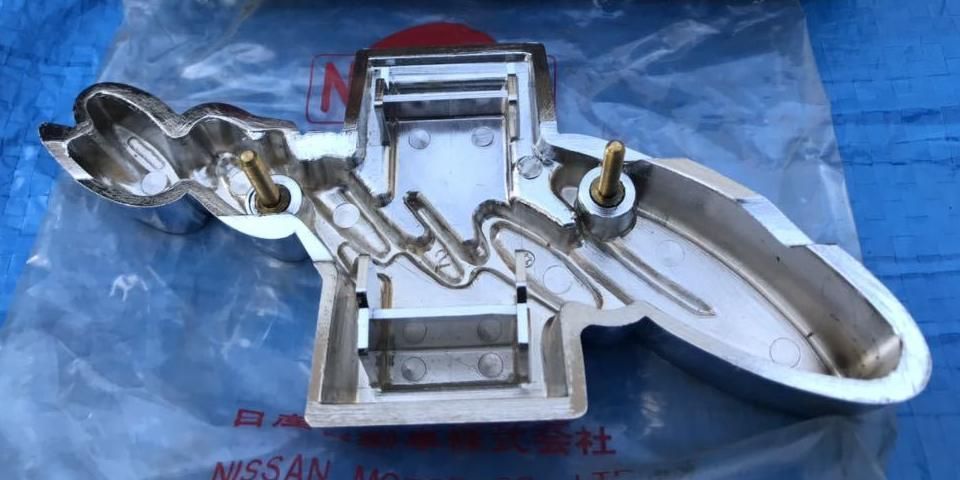

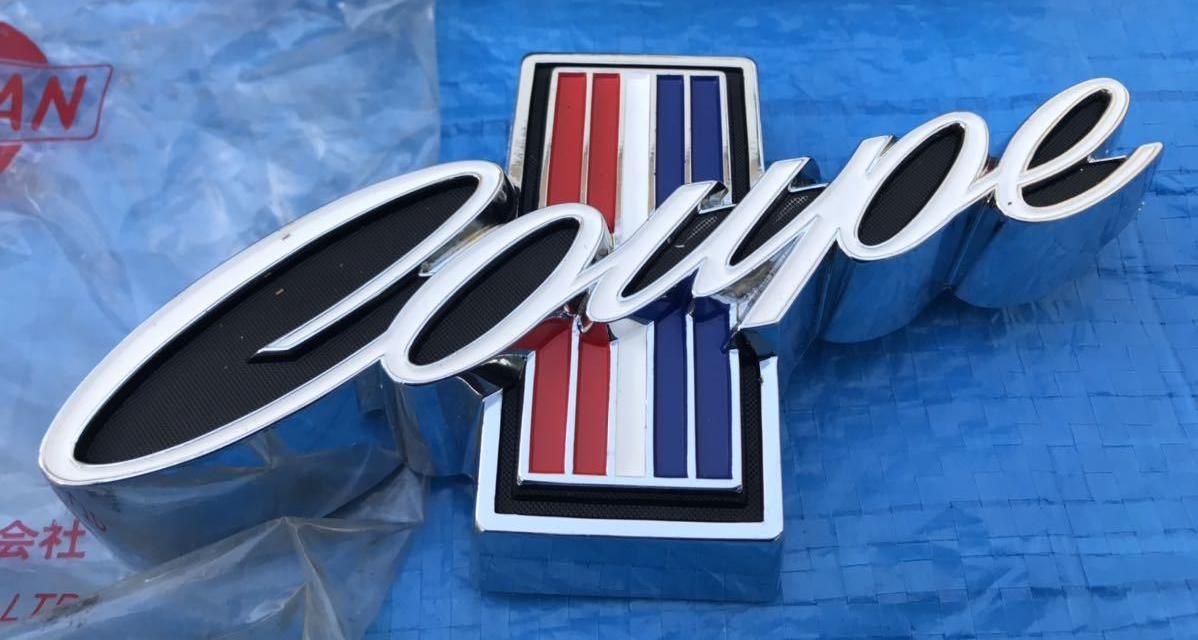

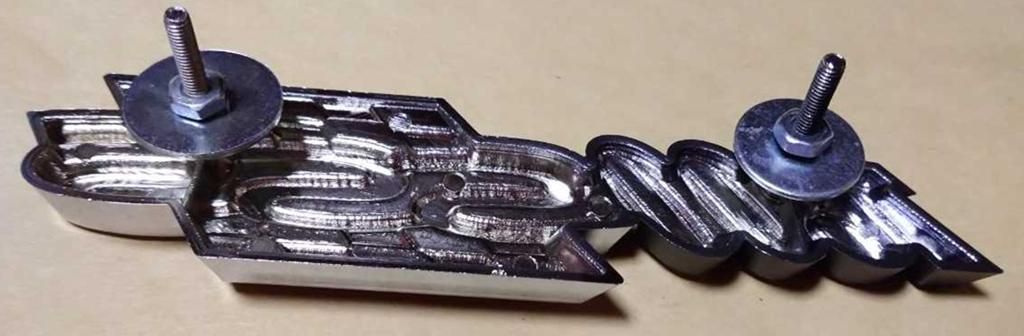

ggzilla Posted May 17, 2025 Author Report Share Posted May 17, 2025 (edited) 1969-1971 Coupe looks similar to the other 1969s but has a white stripe in between the two center bars 62310-A5201 GRILLE-radiator Coupe 1600 62310-A9400 GRILLE-radiator Coupe 1800 62400-A9400 FINISHER-head lamp RH 62401-A9400 FINISHER-head lamp LH * Stainless surround moldings differ Coupe grille (with SSS 1600 badge) "White stripe" Coupe grill (with SSS 1600 badge) 1969-1971 Coupe Badges 62800-N0510 MARK-radiator grille "Coupe" 62800-N0401 MARK-radiator grille "SSS" (1600) 62800-A8700 MARK-radiator grille "1800 SSS" 62800-A5211 badge 1800 SSS badge is approximately 14cm wide Edited May 17, 2025 by ggzilla Quote Link to comment

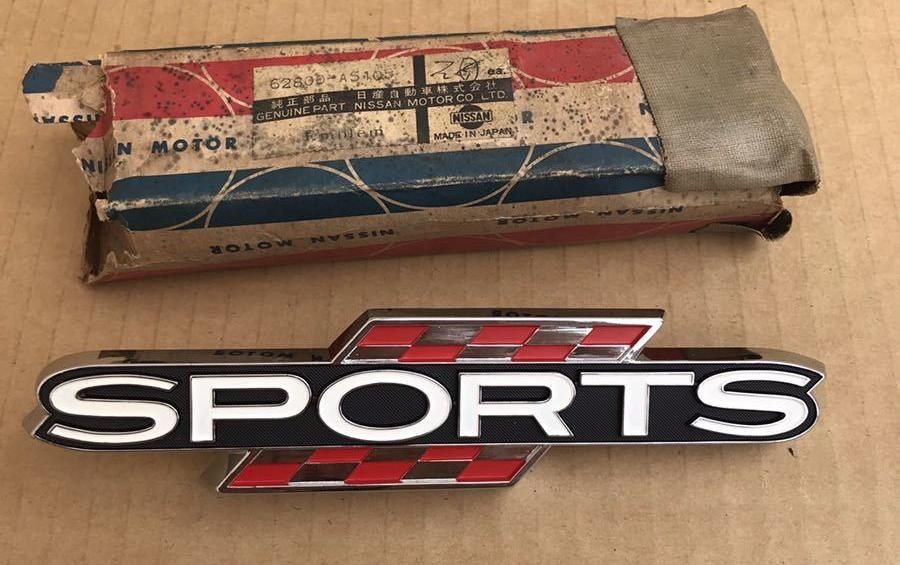

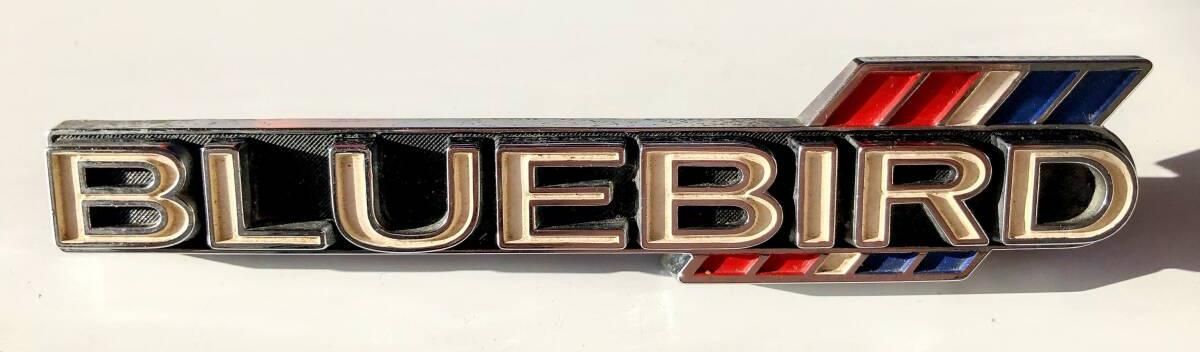

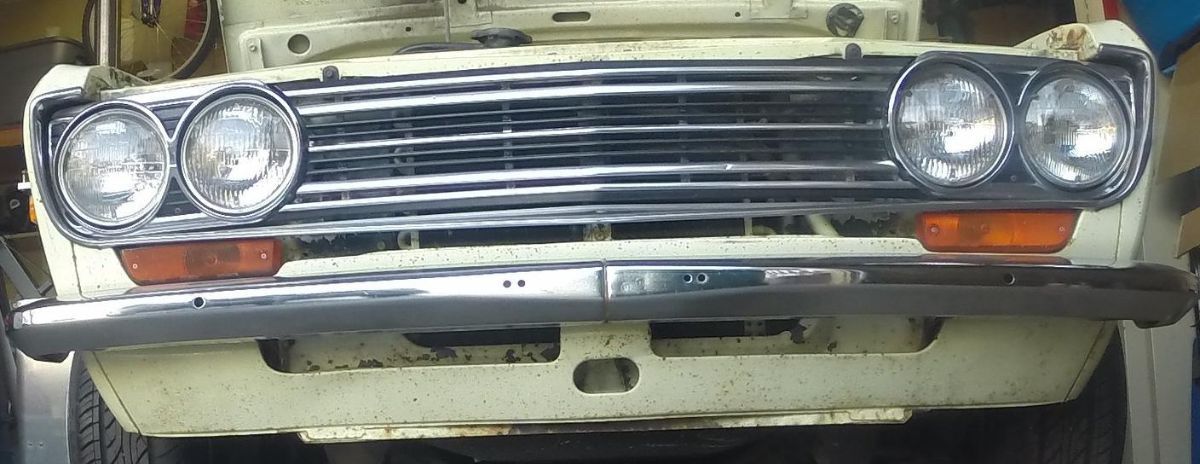

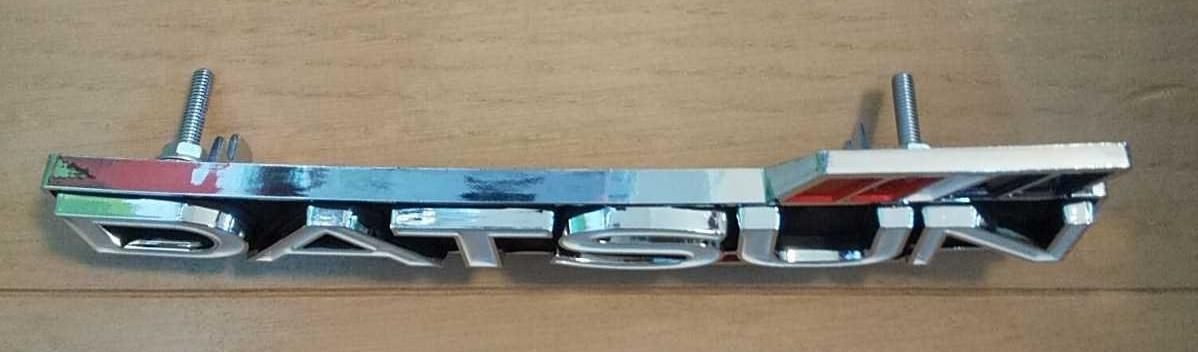

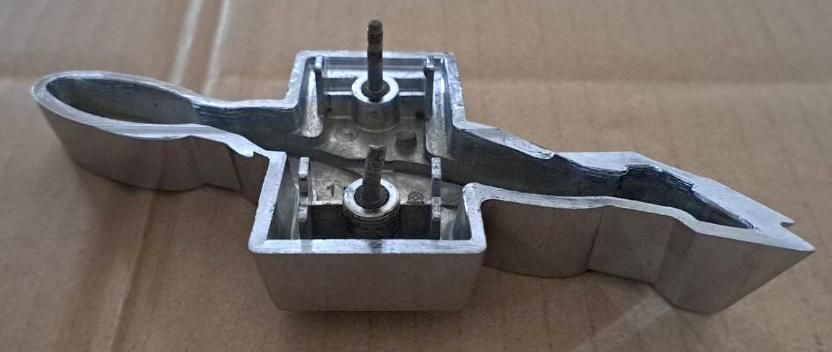

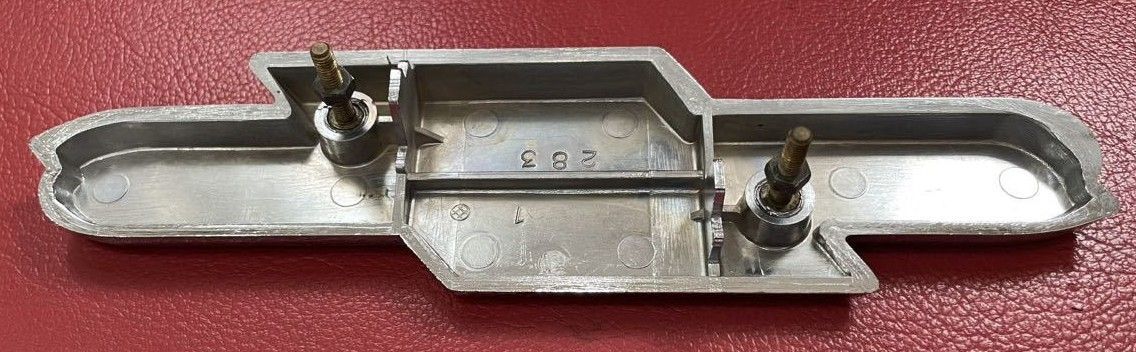

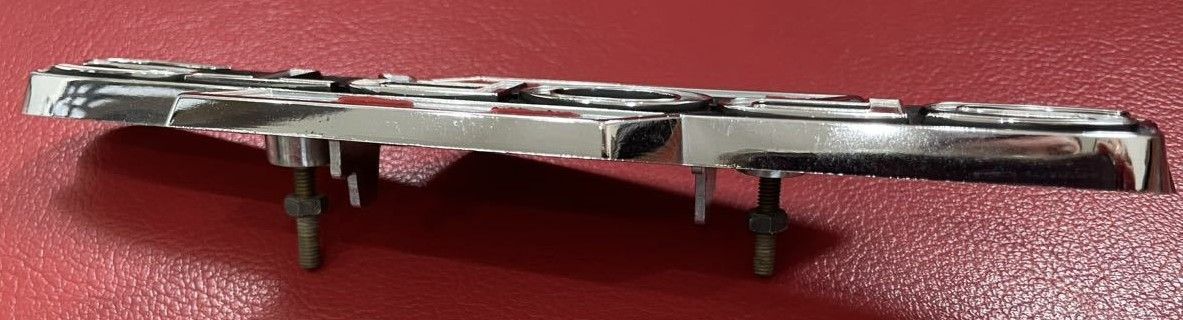

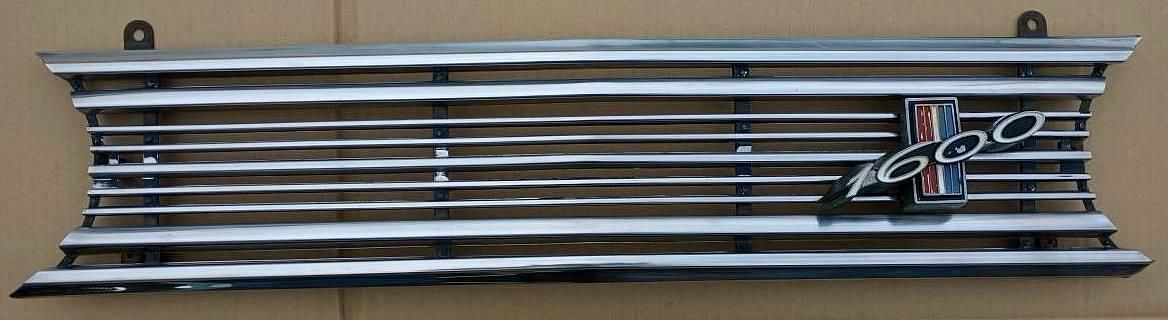

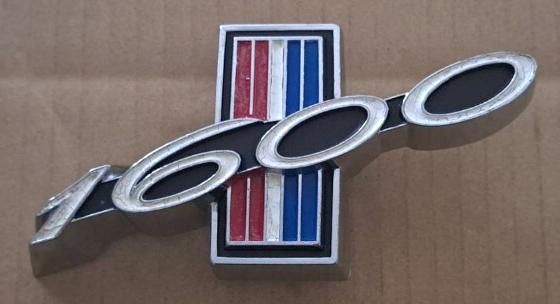

ggzilla Posted May 17, 2025 Author Report Share Posted May 17, 2025 (edited) 1970-1971 sedan/van/wagon grille situation gets complicated * Type A49 Standard * Type A90 Deluxe/GL * Type A87 SSS. Also used for all USA 1970-1973 SSS and USA has shiny center bar JDM Standard has black center bar (also used by SPORTS model) JDM Deluxe Customized 1970 grille with only top & bottom slats shiny. The rest has been painted black 1970-1971 Badges are to the left side of the grille and have a red/white/blue flag (Datsun colors) 62800-A4611 MARK-radiator grille side "BLUEBIRD" 62800-A8900 MARK-radiator grille side "GL" 62800-N0200 MARK-radiator grille side "1600" 62800-A5405 MARK-radiator grille side "SPORT" 62800-A5411 MARK-radiator grille side "DATSUN" (used 1970-1973 in USA market) 1600 1600 1600 emblem is supersized SPORTS bolt spacing differs SPORTS Edited May 17, 2025 by ggzilla Quote Link to comment

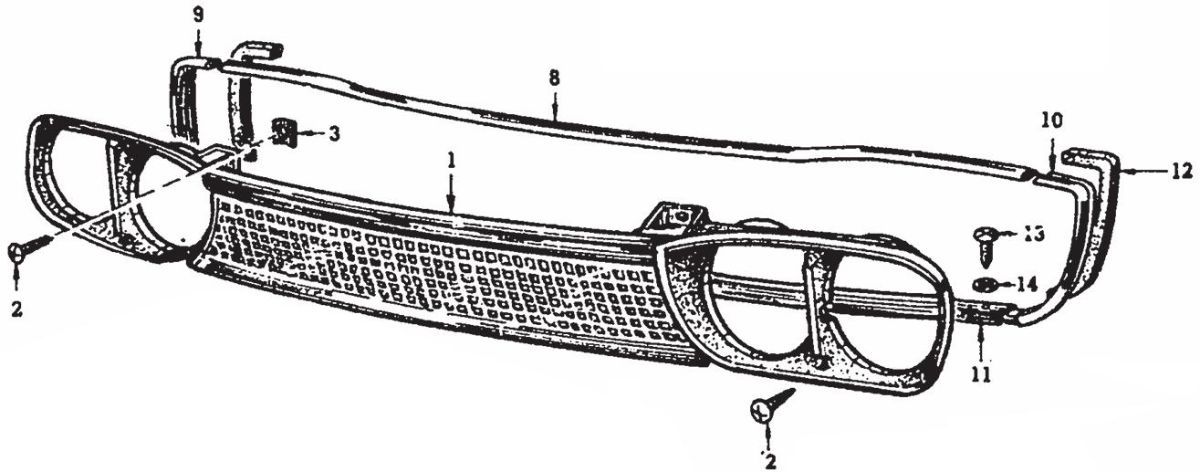

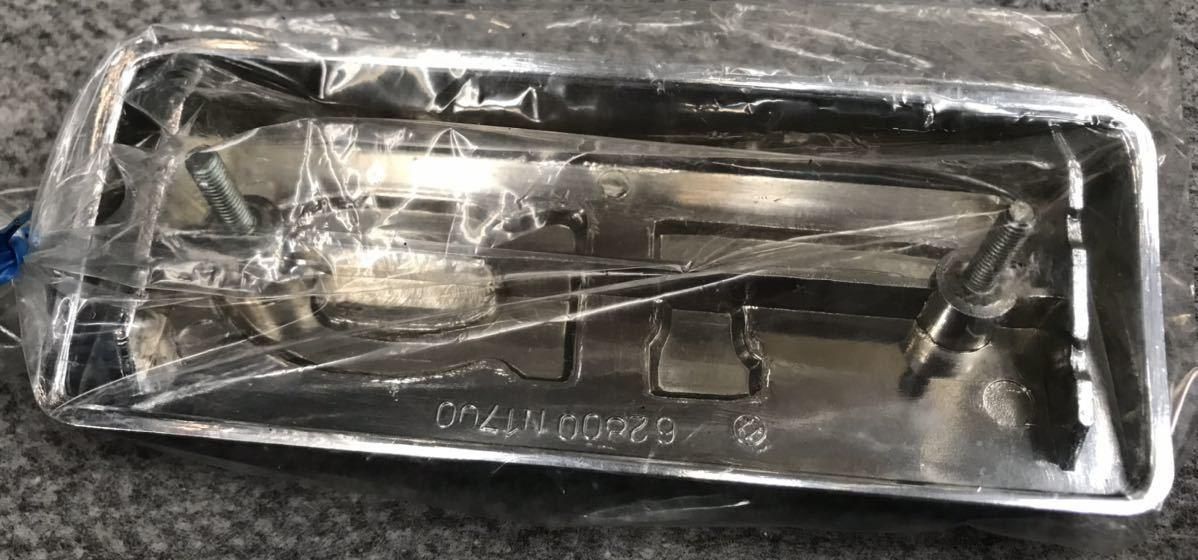

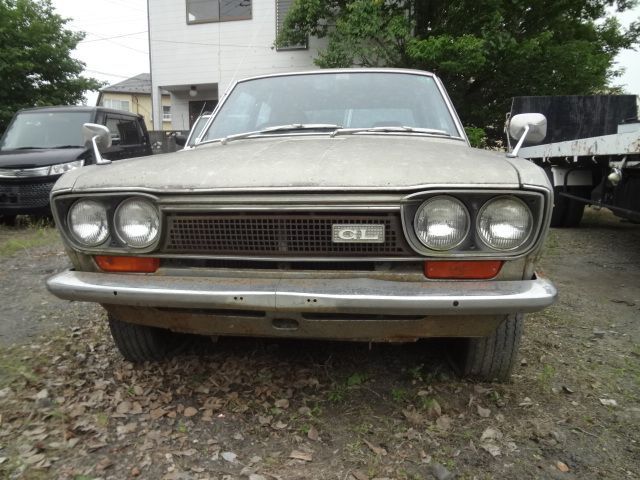

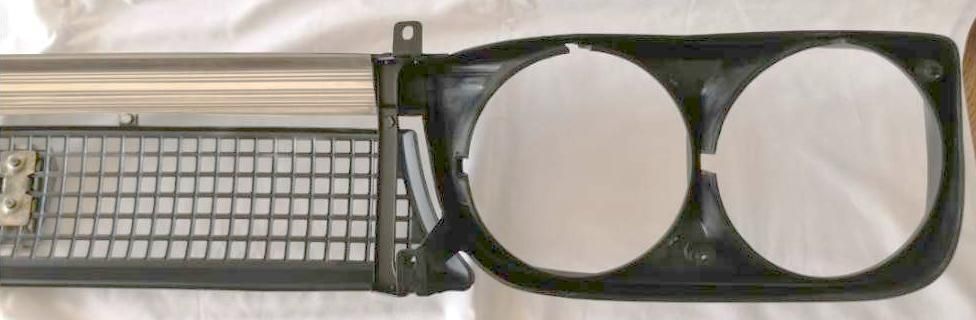

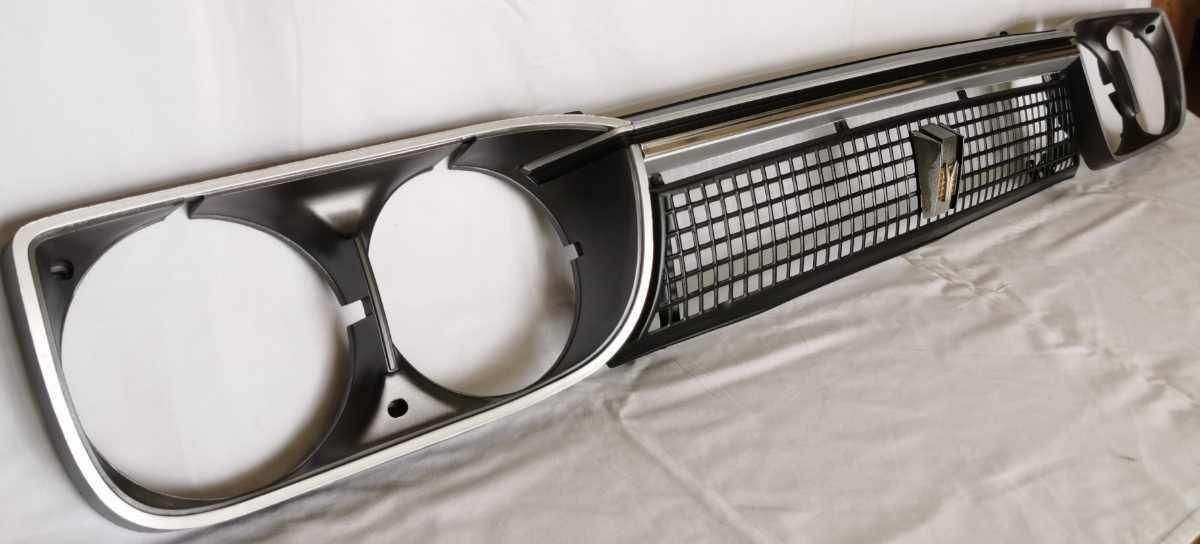

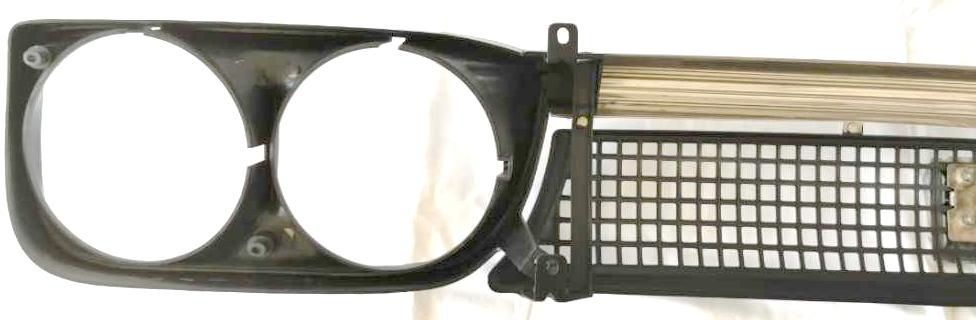

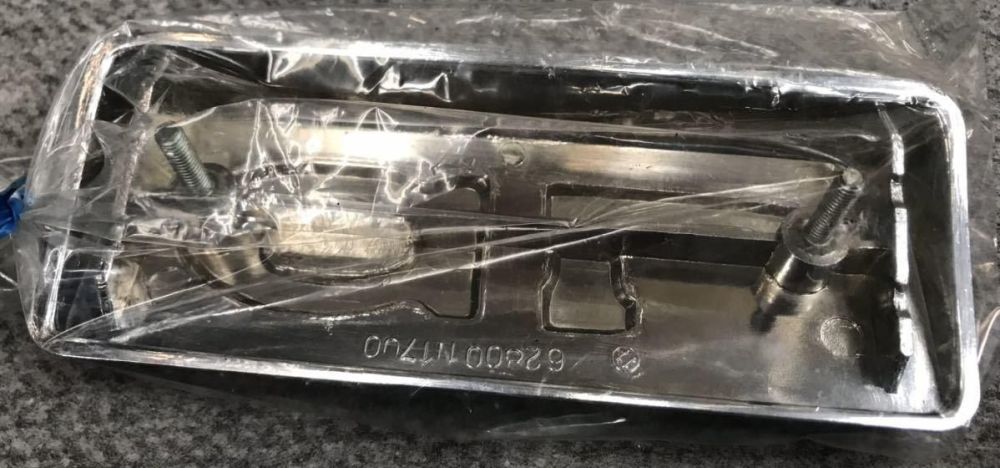

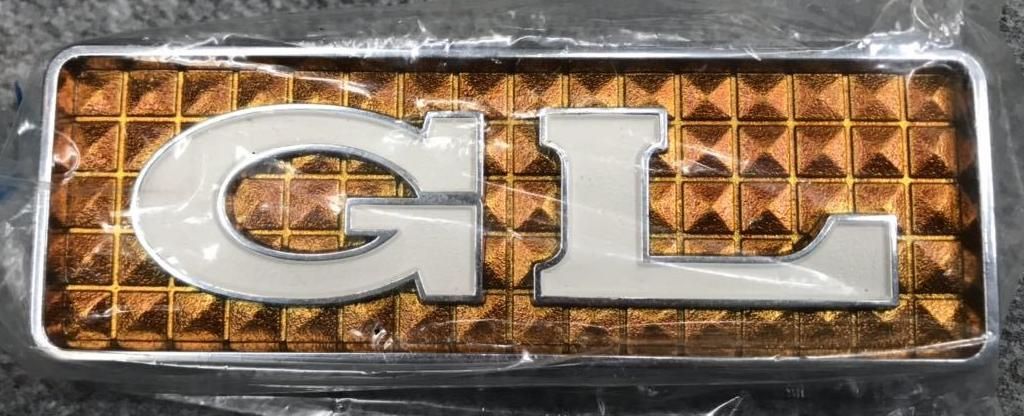

ggzilla Posted May 17, 2025 Author Report Share Posted May 17, 2025 1972 JDM metal grille with plastic headlight surrounds * 4-door sedan * 2-door sedan * 2-door coupe: none made for 1972. Instead see 1972 610 Bluebird-U Hardtop Do these three grilles differ in color finish? In car photos they all look the same, although some have gray surrounds, some black 62310-N2000 GRILLE ASS'Y-radiator SSS 62310-N2100 GRILLE ASS'Y-radiator Standard 62310-N1600 GRILLE ASS'Y-radiator Deluxe * Stainless surround moldings are same as 1970 except RH/LH differ after 1972.02 1972 Deluxe grille with Deluxe supersonic badge Deluxe 1972 SSS grille with OPTION SSS badge 1972 GL grille 4-piece design: Grille center, top bar, LH and RH headlight buckets all bolted together with brackets 62800-N2025 MARK KIT "SSS" 62800-N1725 MARK KIT "GL" (N1700 Ornament) 62800-N1625 ORNAMENT A Deluxe 62800-N2125 ORNAMENT B Standard 1972 "GL" 62800-N1700 Quote Link to comment

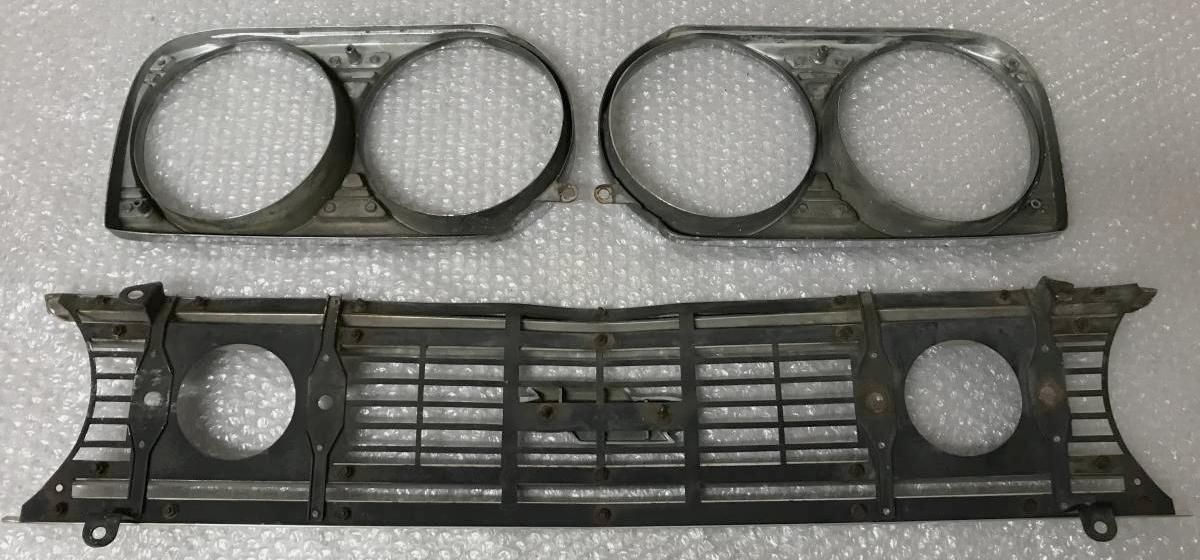

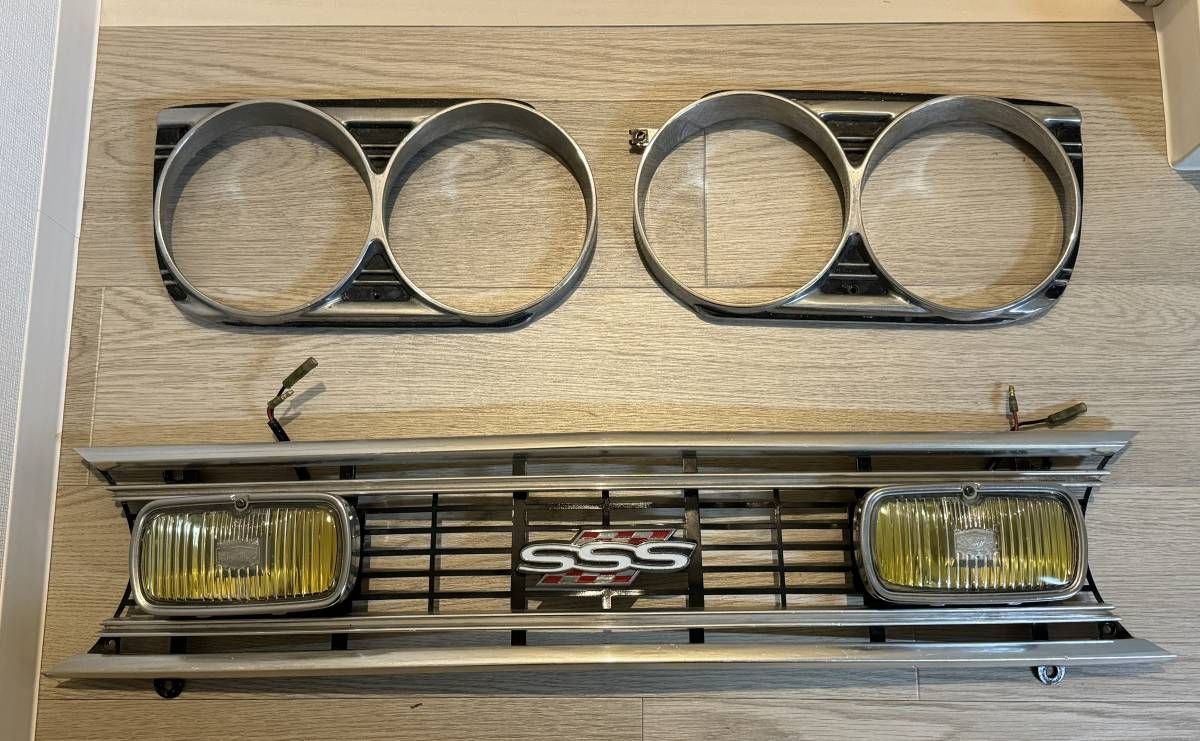

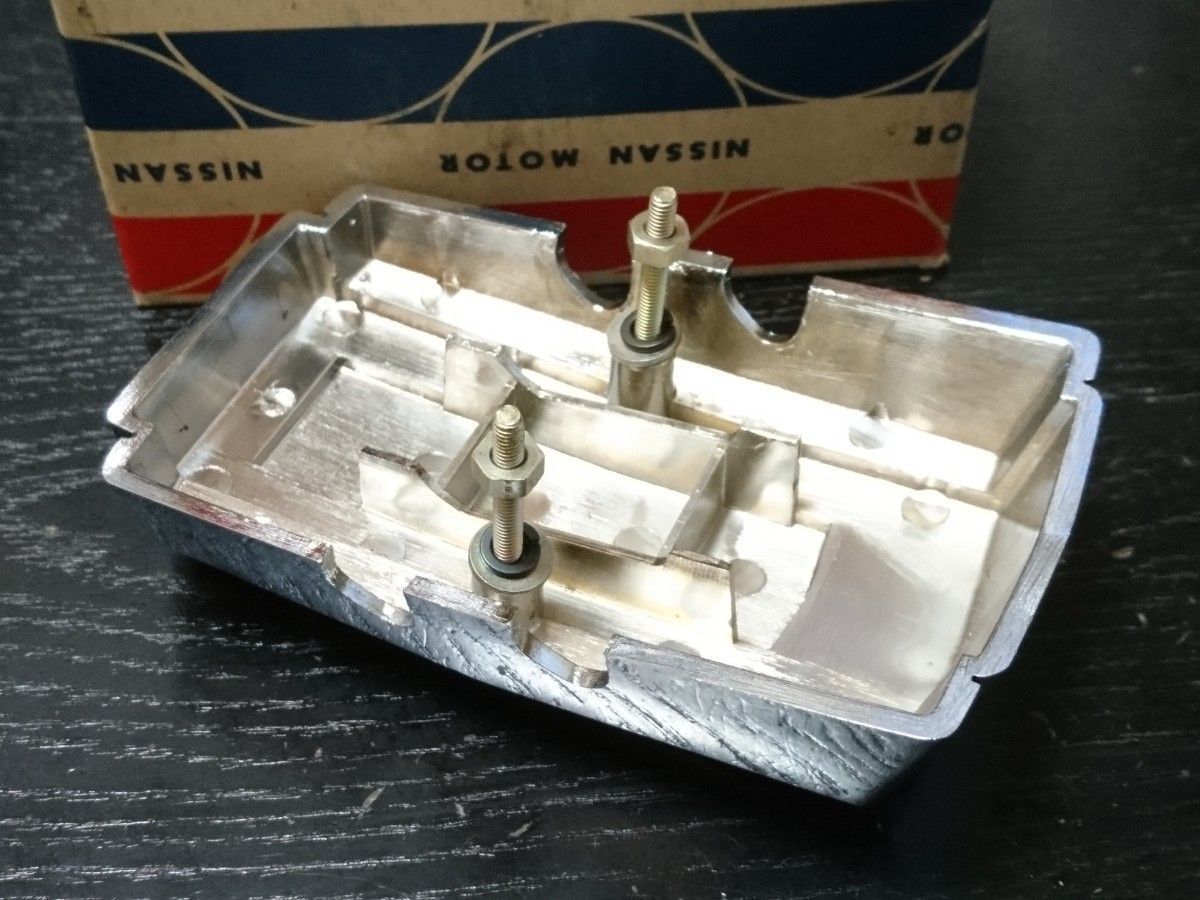

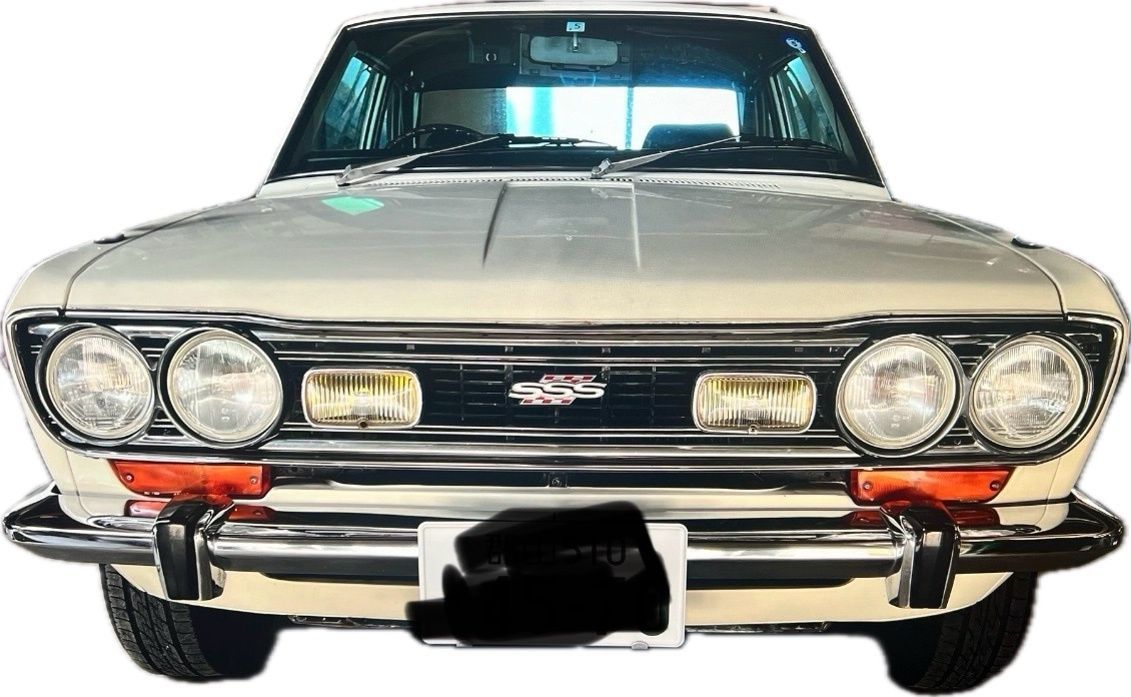

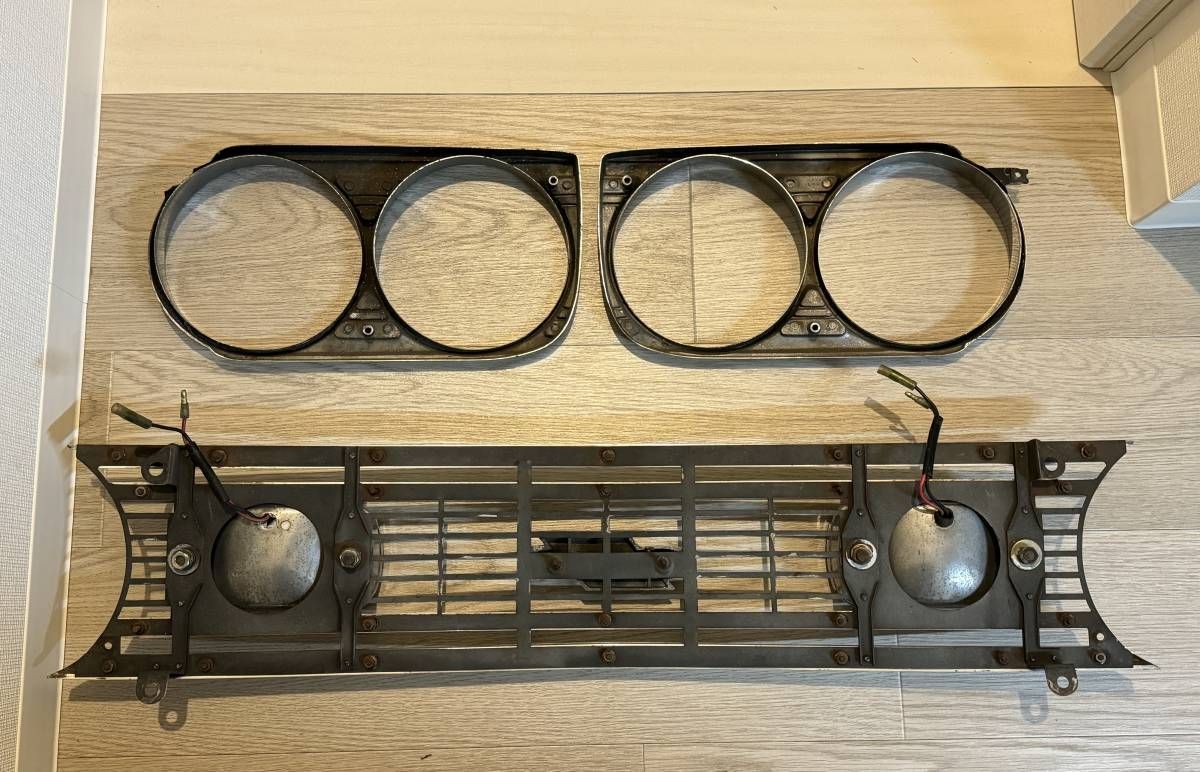

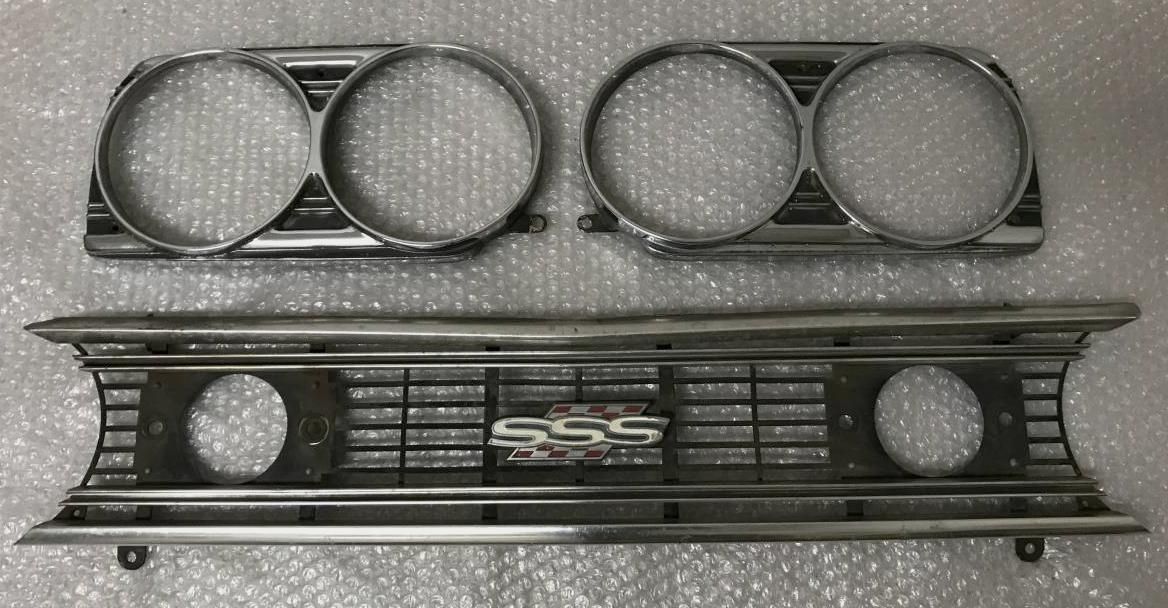

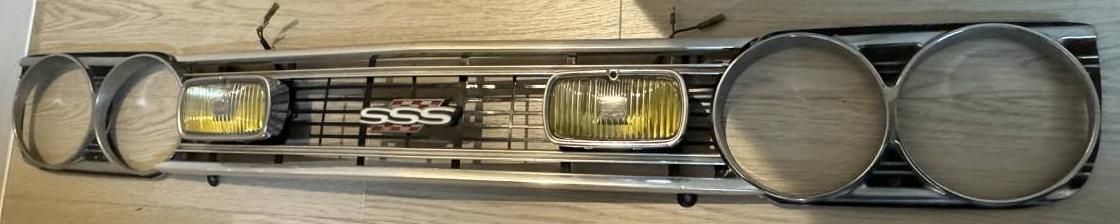

ggzilla Posted May 17, 2025 Author Report Share Posted May 17, 2025 510 OPTION PARTS Fog Lamp Grille, nicknamed by some the "Safari" grille for some reason It has clear lens; lamp body reflector is gold with bullet connectors for the lamp wires Make your own: datsunfreak: DIY safari grill 62300-26505 GRILLE Fog Lamp 62400-26505 FINISHER-head lamp RH 62401-26505 FINISHER-head lamp LH Type 26510 FOG LAMP (grille mount) Ichikoh Deluxe iodine halogen * For parts details, see: Datsun 1200 Club: 510 Fog Lights 62800-26506 MARK-radiator grille "SSS" OPTIONAL PART KP510TK 62800-26500 MARK-radiator grille "D" with eight supersonic icons Not an SSS factory part, but sold via the 510 OPTION PARTS catalog. The SSS badge was optional too This type 265 "D" emblem matches the overall style of 1968 grill badges four little supersonic icons on either side of the 'D' 2 Quote Link to comment
yenpit Posted May 20, 2025 Report Share Posted May 20, 2025 Great info!! Have you looked at SSS Restorer's list of details/differences?? I think Logan offers up some great info too! Quote Link to comment
ggzilla Posted May 20, 2025 Author Report Share Posted May 20, 2025 Thanks. This is the first I've heard of SSS Restorers. But I see they have a web page at https://sssrestorers.com Quote Link to comment
ggzilla Posted May 20, 2025 Author Report Share Posted May 20, 2025 SSS Restorers has much better photos. I can't find a list of details/differences on their web site My list came from Datsun USA and Datsun Japan parts catalogs, and trying to match up photos. But part of that is interpretation as the parts catalogs don't have photos, only drawings. The photos here came from previous Ratsun posts and from eBay and Yahoo Auctions Quote Link to comment
Nick.C. Posted January 29 Report Share Posted January 29 On 5/18/2025 at 5:51 AM, ggzilla said: This type 265 "D" emblem matches the overall style of 1968 grill badges four little supersonic icons on either side of the 'D' This is a 1969 JDM 'Base Model' 510 Coupe grille badge. Quote Link to comment
