Bad gauge cluster voltage regulator? Easy $2 fix.


Recommended Posts

Sorry, didn't check back enough posts. If not compatible maybe the components can be jumbled around to tune it to the correct regulated voltage???

The voltage regulator IC used for that can be found in a variety of output voltages so it is pretty easy to change. 5v is used for the gauges on a 1965-66 Mustang instrument cluster. Linear voltage regulator L7805CV would work. For the early Mustangs I'd probably modify the simple circuit here to filter the input slightly using at a minimum a bridge rectifier and a couple of capacitors on the input. The Mustang aftermarket is extremely well supported and you can buy these all over the place although usually in the ~$40 range.

  • Like 1
Link to comment
  • 1 month later...
  • Replies 75
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

aintnobiscuit did it work ok on your 521? any pictures?


No, unfortunately it didn't work. The gauges only read from about 25% -> 50% instead of from 0 -> 100% full but this truck has weird wiring problems I haven't had time to sort out. I moved to hawaii and didn't bring any cars... just came back so here I am. Can't wait to start working on the truck again.

  • Like 1
Link to comment

Datzenmike please remove if you think this should go to the classifieds. This is not a for sale post just a feeler post.


First I'm not taking orders, I just want to know if there is interest enough in these to justify me ordering parts and building them for sale.


I've built and sold the voltage regulators in the past, there is a picture earlier in the thread of my old one I built.


I'm thinking of building these again and doing some minor improvements to the design also. Mostly add a reverse voltage protection and a little bit of filtering (e.g., a diode and capacitor on the input). This would up the cost of materials (2-3 times) and the time to build each one. The improvement would be the increased ability to survive reverse voltage if hooked up wrong. Downside is more expense on materials, longer time to assemble, and slightly bigger final size.


Most likely shipped cost would probably be at least $20 due to increase in time and materials.


Last time it was a bit of a pain in the ass all things considered, and I only made a couple dollars per and had to drive to the post-office each time.


Shipping was the most expensive part and going to the post-office each time was not fun. I can't mail from my house, every time I tried they would just disappear into the mail system and I would have to send out a replacement, only for them to show up months later. Most of the regulators sold to people not on the forum.


So is this something people would want? Is it worth me buying the parts and building these for sale?



  • Like 1
Link to comment
  • 2 weeks later...
  • 2 months later...
  • 2 years later...
On 4/16/2013 at 11:57 PM, aintnobiscuit said:



You're temp/fuel gauges don't work and you've already checked the output from your fuel/temp sensors to make sure they are not the culprit. You checked continuity of the wires from the sensor to the gauge and the output from the current voltage regulator to find out that it outputs the wrong voltage, none at all or it's fluctuating. Well guess what, I have a solution for you!


I recently found out that my gauge cluster didn't have a voltage regulator, which is why my fuel/temp gauges don't work. Well that's totally unacceptable for me because i want to run all the stock gauges in my 510. It would bum me out to have to run aftermarket gauges when I have perfectly good gauges already in the cluster.


Fast forward to a few posts and questions later I learned the following.


Some basic info needed to figure out the problem

  • The gauge cluster needs ~ 9v to power the fuel and temp gauges
  • The car is DC and runs off 12-15v (i'm only putting this for people who may not know)
  • Without a voltage regulator, the gauges do nothing

How the sensors work with the gauge cluster


The gauges always have power. As temperature or fuel level rises/lowers the resistance in the sensor changes. It allows more or less current to pass through it to the chassis ground. Both sensors work in the same way.


So the problem is we just have the wrong positive voltage going to the gauges... Well all the voltage regulator does is keep the voltage constant given any input power. OK... What are some options? I personally didn't want to buy a whole gauge cluster just for the voltage regulator. I have a background in basic electronics and arduino stuff, so I started searching mouser electronics, digikey and my local parts place marvac.


I found out something awesome.


There are a million really cheap tiny voltage regulators that do the same job as the big metal one on the back of the gauge cluster. Average cost? ~$0.43 to $2.00.


Well that's bad ass isn't it?


I picked up two just to be on the safe side and a PCB (printed circuit board) and set to working.




  • Voltage regulator
    • NTE1910 or
    • LM7809
  • Wire (preferable 3 colors)
  • PCB board (optional but makes it nicer)
  • Project box (optional but makes it nicer)


Explanation of pins on the voltage regulator




Here's a picture of the voltage regulator for reference.

  • Pin on the far left is the power input (in our case 12-15v)
  • The center pin is a "common ground". Just connect it to your chassis ground
  • The far right is the power output (9v)

There are some upgrades you could do to stabilize the signal by adding capacitors, but i honestly didn't think it was a big deal. this isn't the biggest deal in the world, it's a gauge.


Tools needed


  • Soldering iron
  • Solder
  • Multimeter (handy but not necessary i guess)
  • Third hand tool
  • Dikes to cut the wire
  • Wire strippers
  • Electrical tape
  • Black wire*
  • Red wire*
  • Another color of wire*
  • Project box (optional)

*Solid core wire would be best in my opinion for this project since it is not designed to be moved around a lot. Additionally, pick a wire gauge that will fit through the holes in the PCB.*


Setting up the voltage regulator on the PCB


If you're not good at soldering tiny wires, pick a PCB with larger spaces between each hole or spread the pins, being careful not to break them so you have a hole in between each pin. That should be plenty of room to solder comfortably.


  1. Place the voltage regulator on the PCB, bend it so it lays flat against the PCB and solder all three pins.
  2. Place the red wire in the hole in front of the power input pin (far left) and solder it.
  3. Place the black wire in the common ground pin (center) and solder it.
  4. Place the 3rd color wire in the voltage output pin (far right) and solder it.
  5. Connect the power and ground pins
  6. Test the output power pin with a multimeter to confirm ~9v.
  7. Hook up output power to your gauges.
  8. Have a beer.

That's it. Easy right?


Finishing touches / final thoughts


  • Placing this into a project box would be a good idea to keep wires from being broken/bent
  • If you cut down a PCB to a smaller size, sanding the edges will make it look nicer
    • Score both sides of the PCB with an exacto and you will be able to snap it like a cracker




Checked the battery for static test



Third hand tool is nice for soldering PCBs with tiny holes.



This is an idea of how small the VR is compared to the old school one.



Didn't want to fry my gauges so I checked the output before hooking anything up



Testing my gauge... SUCCESS!!!!



So tiny ? I'm so glad I can now finish putting together my gauge cluster.



  • Like 1
Link to comment
  • 3 weeks later...
On 8/30/2018 at 8:35 AM, Mike454SSLS6 said:

None of the pictures are showing to be available. Is this the voltage regulator on the back of the speedometer? https://www.classiczcars.com/forums/topic/56560-240z-gauge-electrical-problem-again/ If so, there is a green wire and a green & red wire. Are they both regulated? Thanks in advance.

So, not to beat a dead datsun, mike is right. The pics dont work. Im experiencing the same issues. Does anyone have any pics they could provideto help a feller out?

  • Like 1
Link to comment

I figured it out. Sorry, I should have taken some pics but just pull the speedometer out and that box is the regulator. Don't worry about the orange wire (or at least I didn't). Cut the two green wires and wire your voltage feed wire to the new regulator input, the other one to the 9volt output. There's a ground wire that was already there. The regulator will ground to that. Done, and works great. Thanks for the original write up. I spent a significant time tracing this wiring problem.

  • Like 1
Link to comment
  • 5 months later...

Hi everyone. I don't have these pictures anymore and the post is from a long time ago. I also don't have any datsuns anymore so I don't frequent ratsun, but when i get my next one i will again.


Here's a picture that should help people with all the questions re: where is the voltage regulator from a quick google search.


Hope this helps!



  • Like 2
Link to comment
  • 1 year later...

Hi everyone! I wanted to see if someone could help me out.


I am changing my gauges on my 73 510 2 door, but I am keeping my original fuel/temp. During this process I created a brief short by accidently testing it with the wiring harness connector 3/4 on. I saw a moment of white smoke and immediately turned the ignition off and discovered that the plug was not all the way on. I put the plug on all the way, no more short, but I noticed that both my fuel/temp gauges are reading low. I took the fuel/temp gauges out to check the voltage regulator and the thin white wire that heats the bimetallic element appears burnt. I think the voltage regulator is shot but the gauges are still functioning.


My plan is to change the regulator with a modern one as suggested in this article. The LM7809 is available on Amazon: https://www.amazon.com/gp/product/B07L22J7F9/ref=ox_sc_act_title_1?smid=A11MW2DTLMFD3&psc=1


What I need to know is where to wire the 3 tabs to (Input, Ground, Output)?


My plan is to unsolder the old voltage regulator but leave it on the board as it is riveted in, then solder on the new regulator.


Can someone tell me if I have I have identified the location of the Input / Ground / Output locations correctly? (SEE DIAGRAM BELOW)

Any help would be greatly appreciated!







Link to comment
  • 2 months later...
On 3/7/2021 at 1:34 PM, dannyboy.831 said:

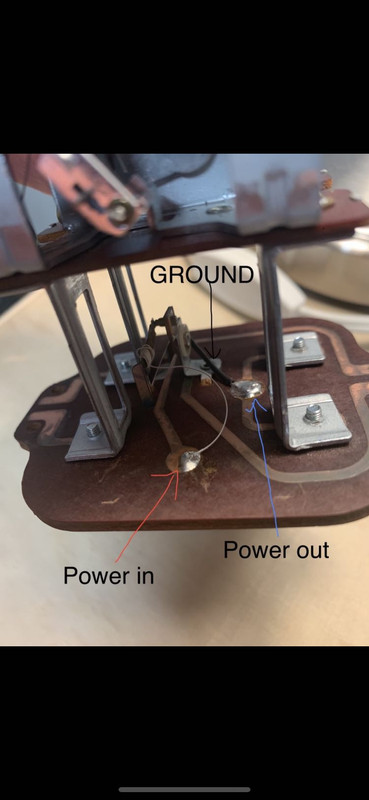

Hey everyone first post here just wanted to thank everyone who contributed to this thread and also show the correct pinout for 70-73 gauges. After reading this entire thread I just went ahead and pinned out all the traces on the back of my gauge cluster. I got both my temp gauge and fuel gauge up and running again using an lm7809. Here is a pic of the finished repair along with 12v in, 9v out and ground labeled.



Link to comment
  • 2 weeks later...
On 6/1/2013 at 12:12 AM, Dguy210 said:

I tried to find what you put up about the plug in power regulator, but it takes me to photo bucket, and no pics or anything. Can somebody tell me where to buy this power regulator and the model or part # please so I can get my gauge cluster back together and drive

Link to comment
On 4/17/2013 at 7:00 AM, aintnobiscuit said:

Unfortunately this was all an after thought and I only used red and black, but when I get home from work I can take some more pictures and maybe throw it on a breadboard to make it easier to see

I can’t get any of your pics to come thru..

Link to comment



Usually the contacts (looks somewhat like a set of points) get dirty/corroded and all that's needed is to lift them apart with a Q tip and slip a folded piece of very fine emery paper between the contacts and draw it out to polish them. Do several times.

Link to comment

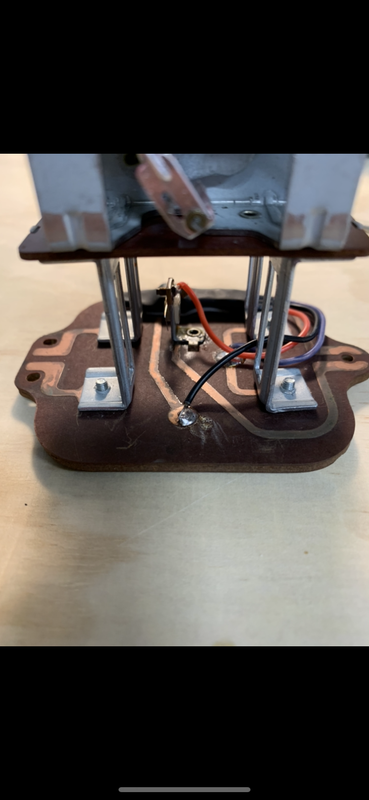

I figured out the wiring locations, disregard the photo above, those locations are not correct. The pictures below are the correct locations. The regulator I used from Amazon is posted above. I put shrink wrap around it because I did not want that metal on the regulator to short anything out on the board. I put double sided tape to mount it. It’s working great now!





Link to comment
6 hours ago, Kevinmp said:
On 6/1/2013 at 12:12 AM, Dguy210 said:

I tried to find what you put up about the plug in power regulator, but it takes me to photo bucket, and no pics or anything. Can somebody tell me where to buy this power regulator and the model or part # please so I can get my gauge cluster back together and drive


Um what? I sure as hell didn't say that, I'm the one who built some of these.


Link to comment
  • 11 months later...

Ok so I have had issue with the vr on cluster before In a 521 years ago but I don’t remember what I did to get it to work again… I think I just pulled it cleaned it a little and put it back in but not sure… well the new to me 521 is having same issue, anybody got ideas for quick fixes without replacing it or doing this mod?

Link to comment
